Lauttasaari Electricity Substation

Lauttasaari substation is centrally located between residential and commercial buildings. Its architecture refers to Lauttasaari's modernist architectural heritage while communicating an industrial infrastructure serving the city.

Lauttasaari substation serves the local power grid. Due to its central location, the cooling system for the substation's transformers was designed to be as quiet and energy-efficient as possible.

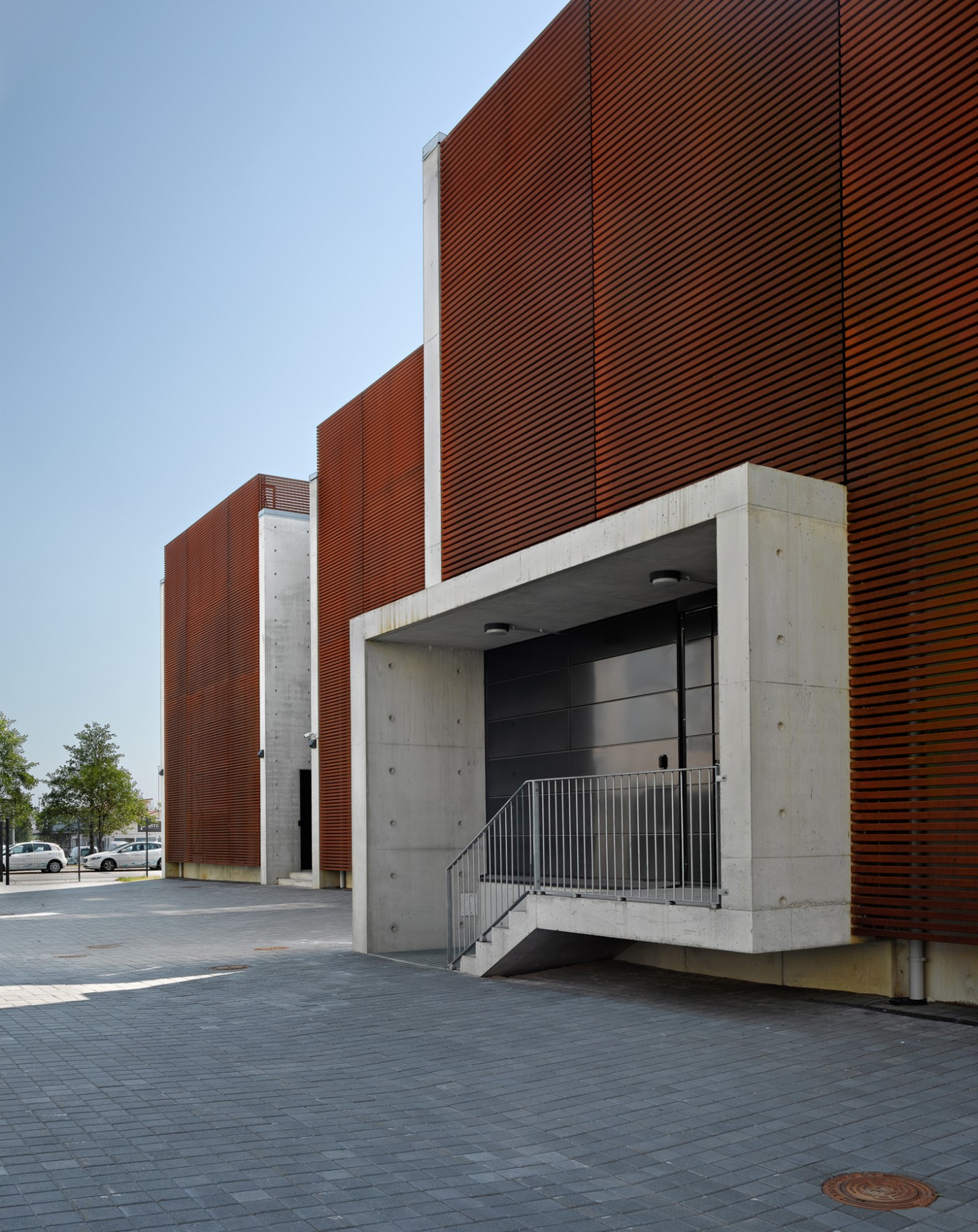

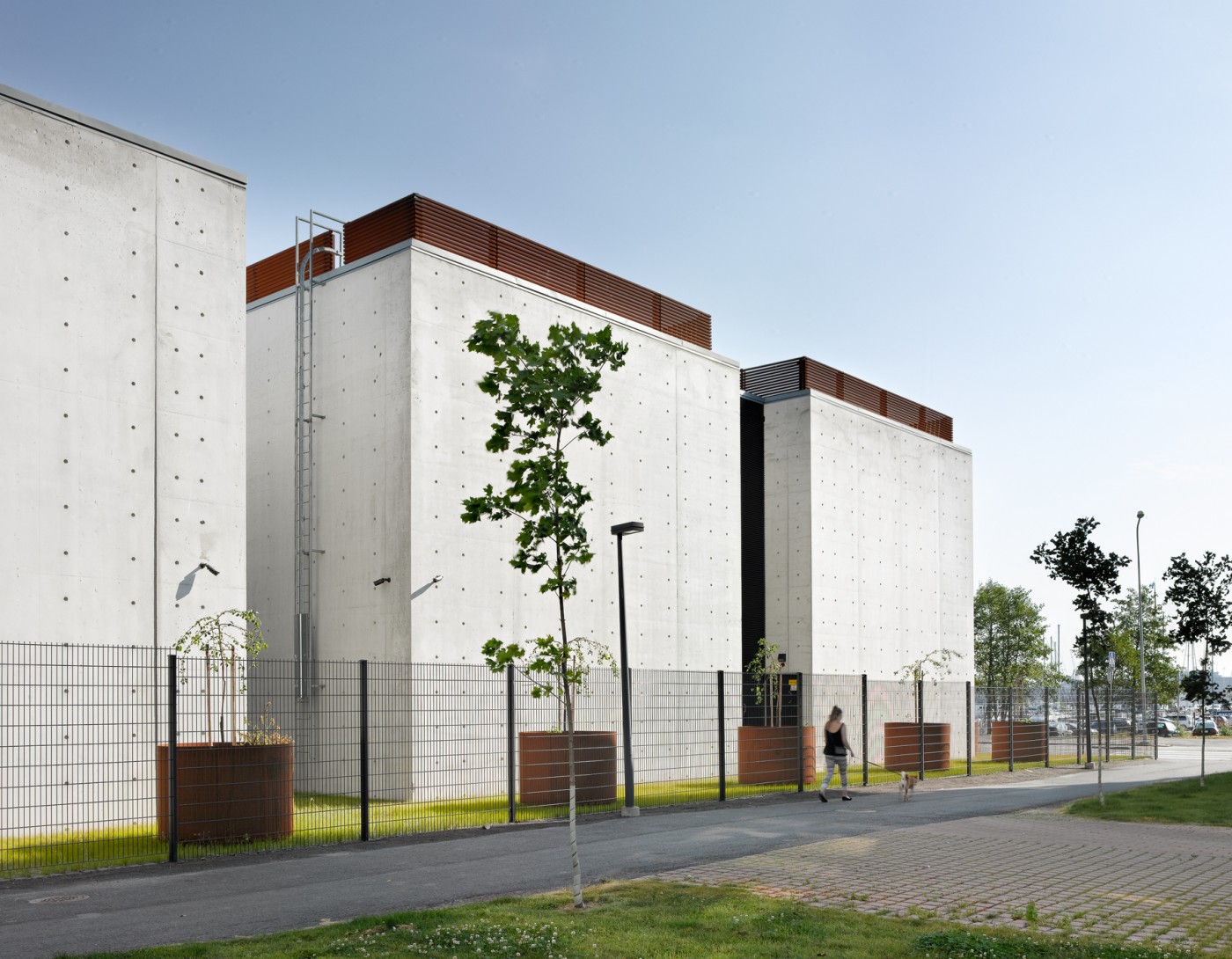

The transformer buildings are made of high-quality in-situ self-compacting concrete bleached with titanium oxide. The outer walls of the switchgear building consist of load-bearing inner shell elements, rigid thermal insulation and an in-situ outer shell as the façade surface. Each casting section of the walls was made without a working seam in a 9 m high casting. Rust-coloured weathering steel grilles complement the concrete structures. The colour and texture of the grille contrast with the smooth, solid concrete surfaces.

Location

Helsinki, Finland

Year

2013

Client

Helen Sähköverkko Oy

Floor area

823 ㎡

Technology

110 kV / 10,5 kV substation

Photographs

Max Plunger
